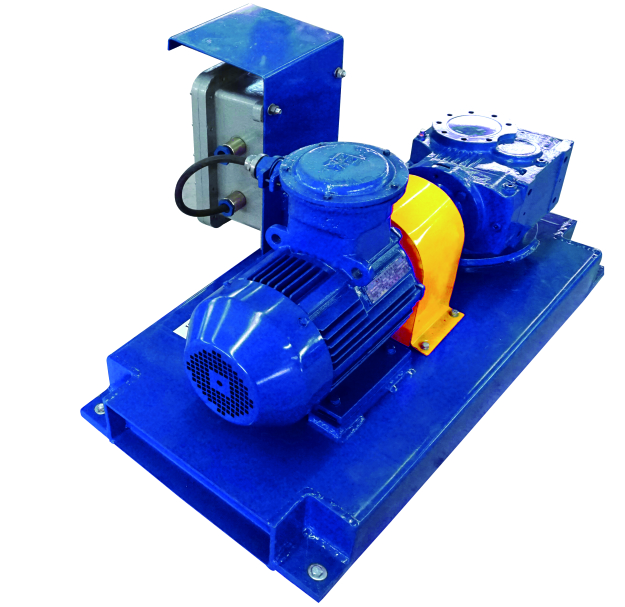

^泥漿攪拌器^
作者：西安華揚油氣設備有限公司 發布日期：2018-10-26
鉆井液攪拌器又叫泥漿攪拌器，其作用是為了保持鉆井液的均勻性并使固相顆粒懸浮，同時對鉆井液進行連續可靠的攪拌。
功能詳情 技術參數
西安華揚油氣設備有限公司泥漿攪拌器 產品特點Features and functions：
1.產品結構優化，占地面積小，結構緊湊。
2.運行平穩，運行噪音小，使用壽命長，易損部件少，性價比高。
3.采用高壓無氣噴涂設備施工，經過底漆、中漆、面漆等工序達到外觀精美及防腐效果。
4.攪拌軸及攪拌葉輪通過打磨酸洗、助鍍、熱浸鋅、鈍化，精細打磨處理，大大提高了使用壽命及防腐效果。
1 Product structure optimization, small size, compact structure.
2 Running smoothly, small operating noise, long service life, less wearing parts, cost-effective.
3 Using high-pressure airless spraying equipment construction, after priming, paint, paint and other processes to achieve beautiful appearance and antiseptic effect
4 Agitator shaft and impeller treated through polishing, pickling, plating, hot dip galvanized, passivation, fine grinding processing, greatly improving the service life and antiseptic effect
1.產品結構優化，占地面積小，結構緊湊。
2.運行平穩，運行噪音小，使用壽命長，易損部件少，性價比高。
3.采用高壓無氣噴涂設備施工，經過底漆、中漆、面漆等工序達到外觀精美及防腐效果。
4.攪拌軸及攪拌葉輪通過打磨酸洗、助鍍、熱浸鋅、鈍化，精細打磨處理，大大提高了使用壽命及防腐效果。
1 Product structure optimization, small size, compact structure.
2 Running smoothly, small operating noise, long service life, less wearing parts, cost-effective.
3 Using high-pressure airless spraying equipment construction, after priming, paint, paint and other processes to achieve beautiful appearance and antiseptic effect
4 Agitator shaft and impeller treated through polishing, pickling, plating, hot dip galvanized, passivation, fine grinding processing, greatly improving the service life and antiseptic effect
|
型號 Model |
電機功率 Motor Power |
葉輪轉速 Impeller Speed |
葉輪直徑 Impeller Diameter |
葉輪數量 Impeller Types |
防爆標準Explosion-proof Standard |
重量 Weight |
外形尺寸 Dimensions |
| HYJBQ3 | 3Kw | 60/72r/min | 600mm | 1 | ExdIIBt4 /IECEX /A-TEX | 190kg | 909×525×527mm |
| HYJBQ5.5 | 5.5Kw | 600mm | 1 | 250kg | 1072×610×588mm | ||
| HYJBQ7.5 | 7.5Kw | 650mm | 2 | 380kg | 1157×670×607mm | ||
| HYJBQ11 | 11Kw | 800mm | 2 | 430kg | 1297×740×692mm | ||
| HYJBQ15 | 15Kw | 950mm | 2 | 480kg | 1330×890×747mm | ||
| HYJBQ18.5 | 18.5Kw | 1000mm | 2 | 740kg | 1510×890×753mm | ||
| HYJBQ22 | 22Kw | 1100mm | 2 | 780kg | 1529×890×753mm | ||
|
附注 Remarks |
以上重量和尺寸不包括泥漿攪拌器軸。 Above weight and dimension did not include the mud agitator shaft。 |
||||||
